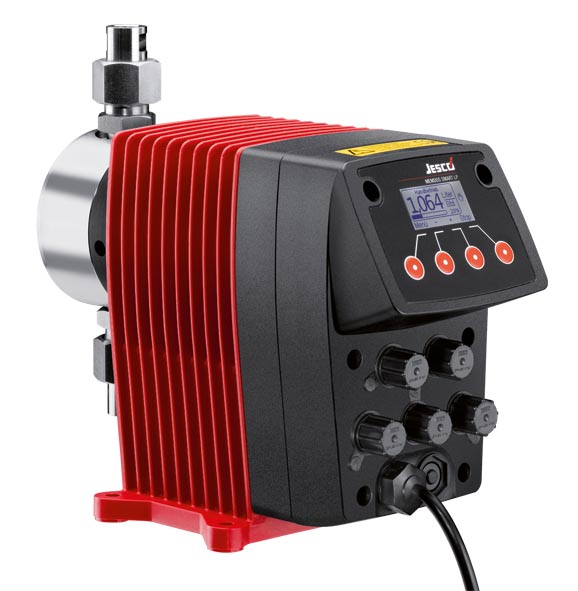

MEMDOS SMART LP

  • B-MEMDOS_SMART_LP-TR01-RGB-L.jpgCapacity range 5 – 20 l/h, up to 15 bar

  • Power supply 110 – 240 V, 50/60 Hz, IP65, 25 W

  • Microprocessor controlled drive

  • Integrated dosing head venting facility (only MEMDOS SMART LP 5 and LP 10 with dosing head made of plastic)

  • Suitable for wall and floor mounting

  • Material finishes PVC, PP, PVDF and stainless steel

  • Stroke frequency can be precisely adjusted via the keyboard

  • Graphic display with multi-language menu

  • Analogue input and pulse input (increase and reduction)

  • Level input with early warning and main alarm

  • Release input for external start/stop

  • Supply amount displayed in various units

  • Diaphragm replacement programme

  • 2 Slow Motion modes for dosing viscous media

  • Stroke feedback output

  • Alarm relay output

  • Batch dosing with interval and timer functions

  • Dosing control input

  • Diaphragm rupture input for leak monitoring

  • Ethernet interface (optional)



MEMDOS SMART LP   5 10 15 20
Delivery capacity at max. back pressure l/h 5.3 10.8 14.2 19.2
ml/stroke 0.59 1.20 1.58 2.13
Max. back pressure bar 15 9 5 4
Delivery capacity at average back pressure l/h 6 11.3 14.7 19.7
ml/stroke 0.67 1.26 1.63 2.19
Average back pressure bar 8 5 3 2
Max. stroke frequency RPM 150
Suction height for non-gassing media mWS 3



Operating conditions and limits

MEMDOS SMART LP   5 10 15 20
Permitted ambient temperature °C 5 – 45 (5 – 40 with PVC parts)*
Relative humidity % Max. 90
Max. sound pressure level dB(A) 51 – 56
Max. supply pressure mbar 800
Viscosity limits mPas 300** / 1000***
Adjustable dosing range % 0 – 100

*Use of dosing pumps at ambient temperatures of under 5 °C has to be checked individually. In those cases please contact the manufacturer.
**With a viscosity of ~300 mPas and above, you must use spring-loaded valves.
***If the viscosity is above 1000 mPas, this must be checked individually.



Permitted media temperatures

MEMDOS SMART LP   5 10 15 20
Dosing head made of PVC °C 0 – 35
Dosing head made of PP °C 0 – 60
Dosing head made of PVDF °C 0 – 80
Dosing head made of stainless steel 1.4571 °C 0 – 80



Electrical data

MEMDOS SMART LP   5 10 15 20
Voltage supply   110 – 240 V, -10% / +5%, 50/60 Hz
Power consumption W 25



Other data

MEMDOS SMART LP   5 10 15 20
Weight (with dosing head made of PVC, PP or PVDF) kg ~2.2
Weight (with dosing head made of stainless steel) kg ~3.3
Diameter of diaphragm mm 39 54
Electrical cable m 1.8 (with mains plug)
Protection class   IP65 (with covering caps on the connections)
Insulation class   F
Valve connection   G5/8 external
Valve size   DN4



Subject to technical changes
